Send Inquiry3 Roll Plate Bending Machine (Length- 1500mm; Capacity- Up To 32 mm)
MOQ : 1 Piece
3 Roll Plate Bending Machine (Length- 1500mm; Capacity- Up To 32 mm) Specification
- Motor Speed
- 1440 rpm
- Product Type
- 3 Roll Plate Bending Machine
- Dimension (L*W*H)
- Approx. 3200 x 1100 x 1300 mm
- Bend Radius
- Min. 2-3x thickness (Material dependent)
- Phase
- Three Phase
- Output
- Cylindrical, Conical or Arc Forms
- Condition
- NEW
- Automation
- Semi-Automatic / Automatic (optional)
- Bending Strength
- 3200 kN (varies with material & thickness)
- Bending Angle
- Up to 360 (by multiple passes)
- Usage
- Sheet/Plate Bending in Metal Fabrication
- Bending Speed
- 3-6 m/min
- Voltage
- 415 V / 380 V 3 Phase
- Color
- Industrial Blue with Silver/Gray
- Power
- Electric
- Weight
- Approx. 5200 kg
- Capacity
- Up to 32 mm thickness, 1500 mm width
- Production Capacity
- 4-6 Ton per shift (material dependent)
- Machine Type
- Hydraulic Plate Bending
- Place of Origin
- India
- Raw Material
- Mild Steel, Stainless Steel, Alloy Steel
- Lubrication System
- Centralized Manual / Automatic
- Max Plate Yield Strength
- 260 MPa
- Bottom Roll Diameter
- 340 mm
- Control System
- PLC Optional / Manual Toggle
- Hydraulic Pressure
- 220 bar
- Rolling Method
- Initial Pinch / Double Pinch (as chosen)
- Roll Adjustment
- Hydraulic / Motorized
- Noise Level
- Under 80 dB(A)
- Minimum Rolling Diameter
- 500 mm (depending on plate thickness)
- Top Roll Diameter
- 360 mm
- Roll Material
- Forged & Hardened Steel (EN8/EN9)
- Pre-bending Length
- 1400 mm
- Safety Features
- Emergency Stop, Overload Protection, Safety Covers
3 Roll Plate Bending Machine (Length- 1500mm; Capacity- Up To 32 mm) Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 7 Days

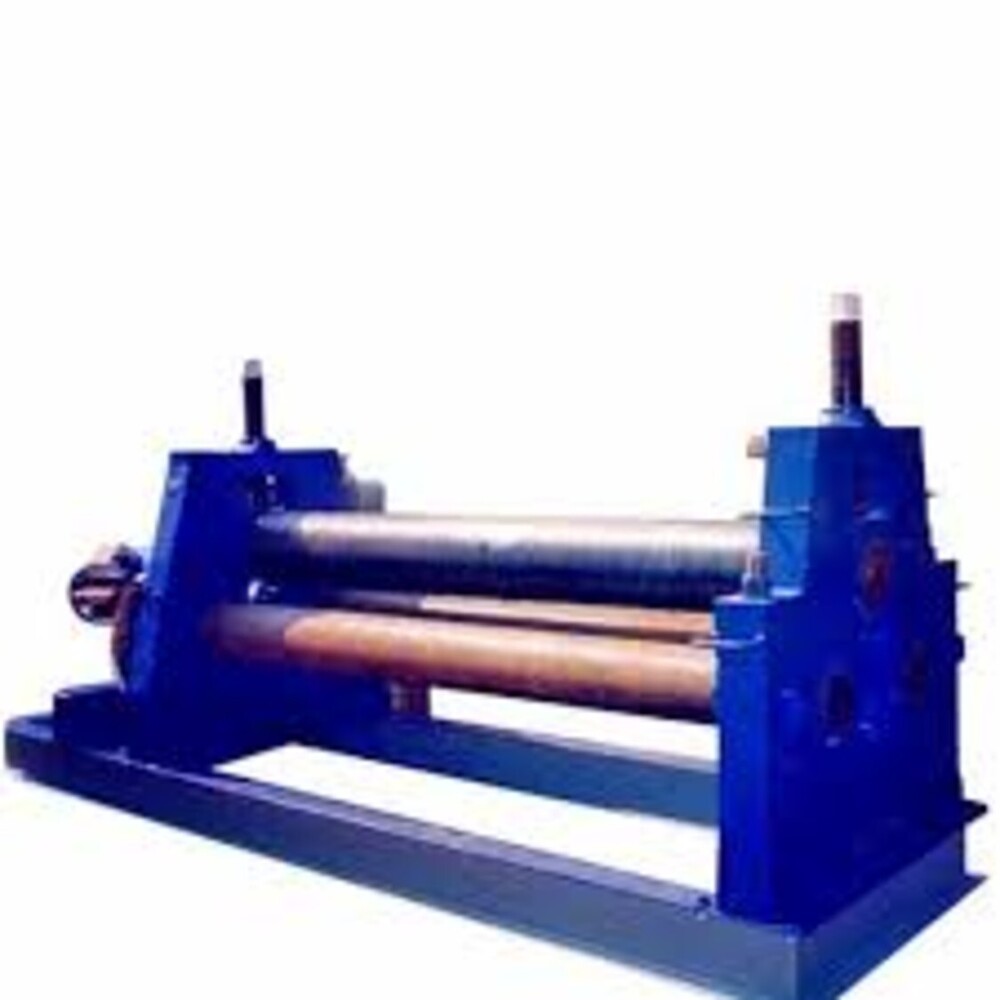

3 Roll Plate Bending Machine (Length- 1500mm; Capacity- Up To 32 mm) About
Procure a stellar solution for metal fabrication with our limited stock 3 Roll Plate Bending Machine (Length-1500mm; Capacity-Up to 32mm). With a top roll diameter of 360mm and bottom rolls at 340mm, its forged & hardened EN8/EN9 steel ensures transcendent durability. The pivotal hydraulic/motorized adjustment, combined with PLC/manual toggle controls and robust safety measures, delivers seamless operations. This semi-automatic/automatic plate bending powerhouse is optimized for industrial performance, bending mild, stainless, or alloy steel into cylindrical, conical, or arc forms. Secure yours today!
Competitive Edge and Applications in Metal Bending
The 3 Roll Plate Bending Machine (Length-1500mm; Capacity-Up to 32mm) delivers a pivotal competitive advantage through initial/double pinch rolling and hydraulic precision. Its semi-automatic/automatic operation suits diverse industrial use, from fabrication shops to heavy-duty manufacturing. Stellar for handling mild steel, stainless, and alloy, it excels in creating cylindrical vessels, cones, and complex arcs. Widely used in shipbuilding, HVAC, and construction, the machine's flexibility increases productivity and enables intricate structural designs with consistent accuracy.
FOB Port, Delivery, and Supply Details
Professional handover and reliable transport services are ensured for this 3 Roll Plate Bending Machine. Available for FOB dispatch from top Indian ports, quotations are promptly shared in response to your requirements. With an emphasis on timely delivery, the standard handover time is 4-6 weeks after confirmation-subject to order volume and customization. Our supply ability reaches up to 20 units per quarter, ensuring clients always find solutions tailored to operational demand. Count on transparent communication regarding shipping, insurance, and logistics.
Competitive Edge and Applications in Metal Bending
The 3 Roll Plate Bending Machine (Length-1500mm; Capacity-Up to 32mm) delivers a pivotal competitive advantage through initial/double pinch rolling and hydraulic precision. Its semi-automatic/automatic operation suits diverse industrial use, from fabrication shops to heavy-duty manufacturing. Stellar for handling mild steel, stainless, and alloy, it excels in creating cylindrical vessels, cones, and complex arcs. Widely used in shipbuilding, HVAC, and construction, the machine's flexibility increases productivity and enables intricate structural designs with consistent accuracy.
FOB Port, Delivery, and Supply Details
Professional handover and reliable transport services are ensured for this 3 Roll Plate Bending Machine. Available for FOB dispatch from top Indian ports, quotations are promptly shared in response to your requirements. With an emphasis on timely delivery, the standard handover time is 4-6 weeks after confirmation-subject to order volume and customization. Our supply ability reaches up to 20 units per quarter, ensuring clients always find solutions tailored to operational demand. Count on transparent communication regarding shipping, insurance, and logistics.
FAQ's of 3 Roll Plate Bending Machine (Length- 1500mm; Capacity- Up To 32 mm):
Q: How does the hydraulic pressure and roll adjustment benefit my bending operations?
A: The machine's 220 bar hydraulic pressure and hydraulic/motorized roll adjustment enable powerful, precise bending for high-strength plates, improving operational efficiency and reducing manual effort during setup and rolling.Q: What plate sizes and materials can this 3 Roll Plate Bending Machine handle?
A: It is designed for plates up to 32mm thick and 1500mm wide, crafted from mild steel, stainless steel, or alloy steel, making it ideal for a wide range of metal fabrication applications.Q: Where is this machine manufactured, and what are the primary distribution channels?
A: This machine is expertly manufactured in India and distributed through a network of dealers, exporters, manufacturers, and suppliers. It is available to procure both domestically and internationally.Q: What is the process for obtaining a quotation and arranging delivery?
A: Simply contact our sales team to request a quotation. Once you confirm the order, we coordinate transport services and schedule a timely handover, usually within 4-6 weeks depending on order specifics.Q: When should the centralized lubrication system be used?
A: The centralized manual or automatic lubrication system is designed for regular use during operations to minimize wear and ensure the machinery runs smoothly, prolonging life and reducing maintenance.Q: What safety features are integrated into the machine?
A: Safety is paramount; the plate bending machine is equipped with emergency stop buttons, overload protection, safety covers, and a robust centralized lubrication system to ensure operator safety and secure operation.
