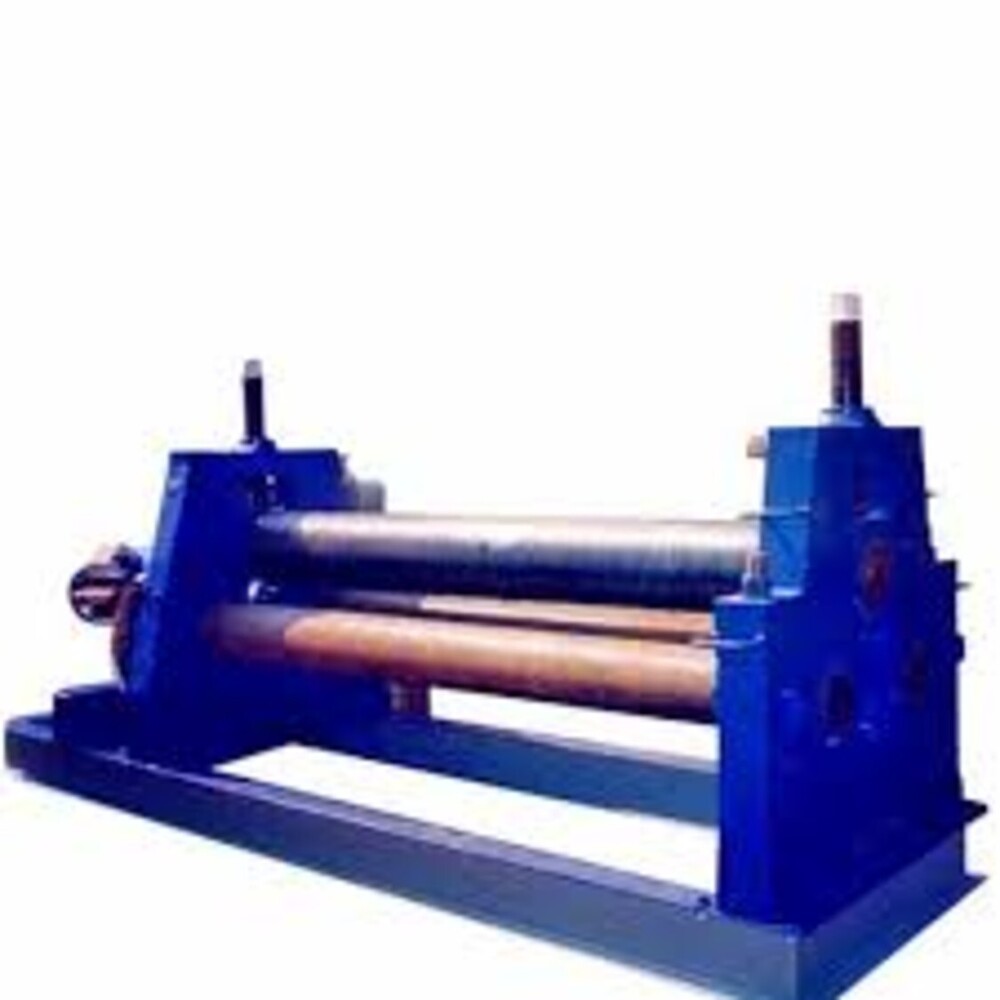

Send Inquiry3 Roll Plate Bending Machine (Length- 2500mm; Capacity- Up To 16 mm)
MOQ : 1 Piece
3 Roll Plate Bending Machine (Length- 2500mm; Capacity- Up To 16 mm) Specification
- Usage
- Industrial, Metal Fabrication, Sheet Metal Bending
- Phase
- Three Phase
- Condition
- NEW
- Bend Radius
- Minimum 1.5 x Thickness
- Color
- Blue & Yellow
- Automation
- Semi-Automatic
- Product Type
- 3 Roll Plate Bending Machine
- Motor Speed
- 1440 RPM
- Place of Origin
- India
- Bending Angle
- 0 - 360 (Adjustable)
- Capacity
- Up To 16 mm plate thickness, 2500 mm length
- Bending Strength
- Up To 16 mm
- Voltage
- 415 V
- Dimension (L*W*H)
- ~4000 mm x 1200 mm x 1200 mm
- Production Capacity
- 1 - 5 pcs/hr (depending on plate thickness and operator skill)
- Output
- Cylindrical and Conical Shapes
- Machine Type
- Plate Bending Machine
- Raw Material
- Steel Sheets, Plates
- Weight
- Approx. 3500 kg
- Bending Speed
- 4 - 6 m/min
- Power
- Electric
- Material Grade Capability
- Mild Steel, Stainless Steel, Alloy Steel
- Safety Features
- Emergency Stop, Overload Protection
- Control Panel
- Standard Electrical Panel with Emergency Stop
- Roll Arrangement
- Pyramid Type, 3 Roller Symmetrical
- Surface Finish
- Anti-Corrosive Painted
- Roll Material
- Forged Hardened Steel
- Lubrication System
- Centralized Manual Lubrication
- Side Roll Movement
- Hydraulic
- Main Drive Motor
- 7.5 - 10 HP (Model dependent)
- Working Length
- 2500 mm
- Top Roll Adjustment
- Hydraulic / Manual (as per model)
- Roll Diameter
- Approx. 240 mm
3 Roll Plate Bending Machine (Length- 2500mm; Capacity- Up To 16 mm) Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 50 Pieces Per Month
- Delivery Time
- 10 Days
3 Roll Plate Bending Machine (Length- 2500mm; Capacity- Up To 16 mm) About
Spotlight your workshop's monumentality with our Top-rated 3 Roll Plate Bending Machine-kingly in performance and flawless in results. Designed for strength and versatility, it boasts a 2500mm working length and up to 16mm bending capacity, making it ideal for industrial metal fabrication. The forged hardened steel rolls and pyramid-type symmetrical arrangement ensure smooth and precise bends in mild, stainless, and alloy steels. Enhanced with a centralized manual lubrication system and anti-corrosive finish, this machine excels in safety and durability, truly a top choice for professionals requiring excellence.
Specific and General Uses, Application Surfaces & Usage Type
The 3 Roll Plate Bending Machine (2500mm; up to 16mm) is engineered for both specific and general metal fabrication needs. It shapes steel sheets and plates into cylindrical or conical forms, making it perfect for manufacturing tanks, pipes, and structural elements. Its application surfaces span across mild steel, stainless steel, and alloy steel, suiting diverse industrial sectors. Designed for industrial environments, its kingly performance assures reliability in both heavy-duty and routine sheet metal processing tasks.
Export Market Coverage, Transaction Terms & Delivery Assurance
Order completion is seamless when you choose this Top Plate Bending Machine, as we supply to monumental markets across Asia, Middle East, Africa, and Europe. Our payment terms include L/C, T/T, and flexible exchange options to suit diverse buyer requirements. Delivery time is prompt, typically within 3-5 weeks post order confirmation. As exporter, distributor, supplier, manufacturer, and trader from India, we prioritize smooth supply, administrative clarity, and reliable exchanges for every transaction.
Specific and General Uses, Application Surfaces & Usage Type
The 3 Roll Plate Bending Machine (2500mm; up to 16mm) is engineered for both specific and general metal fabrication needs. It shapes steel sheets and plates into cylindrical or conical forms, making it perfect for manufacturing tanks, pipes, and structural elements. Its application surfaces span across mild steel, stainless steel, and alloy steel, suiting diverse industrial sectors. Designed for industrial environments, its kingly performance assures reliability in both heavy-duty and routine sheet metal processing tasks.
Export Market Coverage, Transaction Terms & Delivery Assurance
Order completion is seamless when you choose this Top Plate Bending Machine, as we supply to monumental markets across Asia, Middle East, Africa, and Europe. Our payment terms include L/C, T/T, and flexible exchange options to suit diverse buyer requirements. Delivery time is prompt, typically within 3-5 weeks post order confirmation. As exporter, distributor, supplier, manufacturer, and trader from India, we prioritize smooth supply, administrative clarity, and reliable exchanges for every transaction.
FAQ's of 3 Roll Plate Bending Machine (Length- 2500mm; Capacity- Up To 16 mm):
Q: How does the 3 Roll Plate Bending Machine ensure flawless bending for different material grades?
A: The machine uses forged, hardened steel rolls and hydraulic adjustment (depending on the model) to accommodate mild steel, stainless steel, and alloy steel sheets, providing precise, smooth, and consistent bending for various material strengths and thicknesses.Q: What is the process for adjusting the bending angle or roll positioning?
A: Depending on the model, the top roll can be adjusted hydraulically or manually, while the side rolls move hydraulically. This allows the operator to set the bending angle from 0-360 degrees and control the roll settings for different cylindrical or conical shapes.Q: When can I expect my order to be completed and delivered?
A: Order completion and supply generally take 3-5 weeks after order confirmation, depending on production schedules and customization requirements. We prioritize timely exchanges and reliable shipping to global export destinations.Q: Where is this machine best utilized?
A: This top-rated plate bending machine is ideal for industrial workshops, fabrication plants, and manufacturing units involved in metalworking, tank fabrication, and custom sheet metal bending for construction or engineering purposes.Q: What are the main safety features of the 3 Roll Plate Bending Machine?
A: Safety is monumental, featuring an electrical control panel with an emergency stop and overload protection to prevent accidents and protect operators during use.Q: How does the centralized lubrication system benefit ongoing operation?
A: The centralized manual lubrication system provides easy, efficient maintenance, ensuring all rolls are properly lubricated for flawless operation, minimizing mechanical wear, and extending equipment lifespan.
